产品名称：
产品型号：
产品类别： |
SE2514 手动定焦镜头
SE2514
2013 AVENIR ETOKU 精工镜头---手动定焦镜头 |
|
|
|
|
| |
| |
产品技术参数说明 |
 |
|
| |
| Model No |
SE2514 |
| Image Format Cover |
1/3" 1/2" 2/3" 1" |
| Focal Length |
25.0mm |
| Maximum Aperture Ratio |
F1.4-C |
| Iris |
Operation |
Manual |
| Iris Range |
F1.4 - Close |
| FocusOperation |
Focus |
Manual |
| Scale |
Far Near |
Angle Field of View
(D×H×V) |
1/3 inch |
10.6°× 8.0° |
| 1/2 inch |
14.2°× 10.6° |
| 2/3 inch |
19.4°× 14.6° |
| 1 inch |
27.8°× 20.9° |
| Minimum Object Distance |
0.5 m |
| Back Focal Length |
11.50 mm |
| Effective Diameter |
Front |
Φ18.7 mm |
| Rear |
Φ14.0 mm |
| Filter Screw Size |
--- |
| Mount |
C |

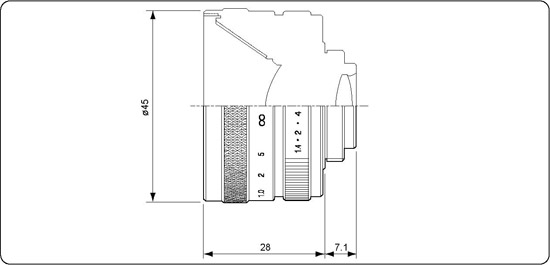

| Mechanical Dimension(D×L) |
Φ46.0 mm×28.0 mm |
| Weight |
81.0g |
| Comments |
--- |
|
| |
|
|
