SE1614MP 百万像素高清镜头
SE1614MP
2013 AVENIR ETOKU 精工镜头---百万像素高清镜头 |
|
|
|
|
| |
| |
产品技术参数说明 |
 |
|
| |
| Model No |
SE1614MP |
| Image Format Cover |
2/3" |
| Focal Length |
16.33mm |
| Maximum Aperture Ratio |
F1.4-C |
| Iris |
Operation |
Manual |
| Iris Range |
F1.4-C |
| FocusOperation |
Focus |
Manual |
| Scale |
Far Near |
Angle Field of View
(D×H×V) |
1/3 inch |
16.9°X12.7° |
| 1/2 inch |
16.9°X12.7° |
| 2/3 inch |
30.4°×22.9° |
| 1 inch |
*** |
| Minimum Object Distance |
0.3m |
| Back Focal Length |
12.67mm |
| Effective Diameter |
Front |
Φ20mm |
| Rear |
Φ14mm |
| Filter Screw Size |
M30.5 P=0.5 |
| Mount |
C |

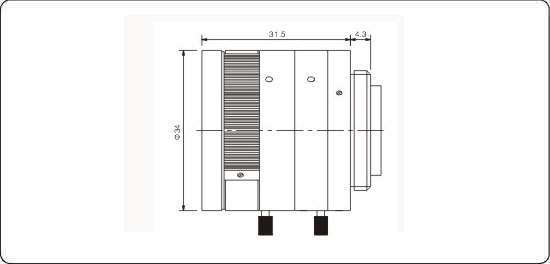

| Mechanical Dimension(D×L) |
Φ34mmX31.8mm |
| Weight |
81g |
| Comments |
1.5 Megapixel（2/3") |
|
| |
|
|
